The Expert pro 1200A/50mV Shunt kit, can be used in applications where the battery current would exceed the maximum ratings of the standard supplied 500A shunt. After installing the 1200A/50mV shunt, the only thing left to do is to set the Expert Pro (-hv) Function settings F6.1 and F6.2 to respectively 1200 Amps and 50 […]
Expert Pro High Current 1200A/50mV Shunt Read More »
DC-DC converters are used to convert from one voltage level to another. In our lineup we are offering models with 12V, 24V or 48V inputs and 12V or 24V outputs at different power levels. There are three different series available: TDC, TDCi and TDCi-CH. Please click the More info button below for a more detailed
DC to DC Converters (12V/24V/48V) Read More »
The DC Modular Remote Battery Switch (RBS) is a smart high current magnetic latching contactor, that can handle continuous DC currents of up to 500Amps. The RBS can easily be installed in an engine room or battery compartment, while being controlled from a more convenient location by a small panel mounted switch. But the RBS
Remote Battery Switch (500A) Read More »
The DC Modular Battery Protect Relay (TBP) has the same capabilities as the Remote Battery Switch (RBS). It is a smart high current magnetic latching contactor, that can handle continuous DC currents of up to 500Amps. Whereas the RBS is mainly used as a locally or externally controlled battery load switch, the TBP has a
Battery Protect Relay (500A) Read More »
The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members. The solid and compact design, as well as the possibility to link up multiple busbars on a fixed grid, make these products the best choice for all professional DC power systems. Recently
The DC Modular single and dual insulated studs are ideal parts to extend cables, add power taps or form termination end-points. The solid and compact design, as well as the possibility to link these up with other DC Modular family members, make these products the best choice for all professional DC power systems. Please download the
DCM Insulated Studs Read More »
A wide range of fuseholders are available in the DC Modular lineup, covering fuse Amp ratings from 1A up to 600A. Fuseholders are offered for the ATO blade, Mega , ANL and Class- T type of fuses, providing solutions for a wide range of applications. Please download the DC Modular brochure, or check this YouTube video
Fuse holders for ATO, Mega, ANL and Class-T fuses Read More »
DC Modular Link Plates. (SKU: 50790xx) Due to the common interconnection heights, smart space saving arrangements of multiple DC Modular products can be made by linking these together using the optional Link Plates. We have designed a range of Link Plate sizes to create all possible DCM combinations. All Link Plates are compatible with M8
In order to complement the high current fuseholders from our DC Modular lineup, we are able to supply the required fuses as well. AEP Pacific stock premium fuse brands Littelfuse and SIBA. For optimal safety, we always advise our customers to use fuses from well known brands. At this moment we can offer the following
Fuses (Mega, ANL and Class-T) Read More »

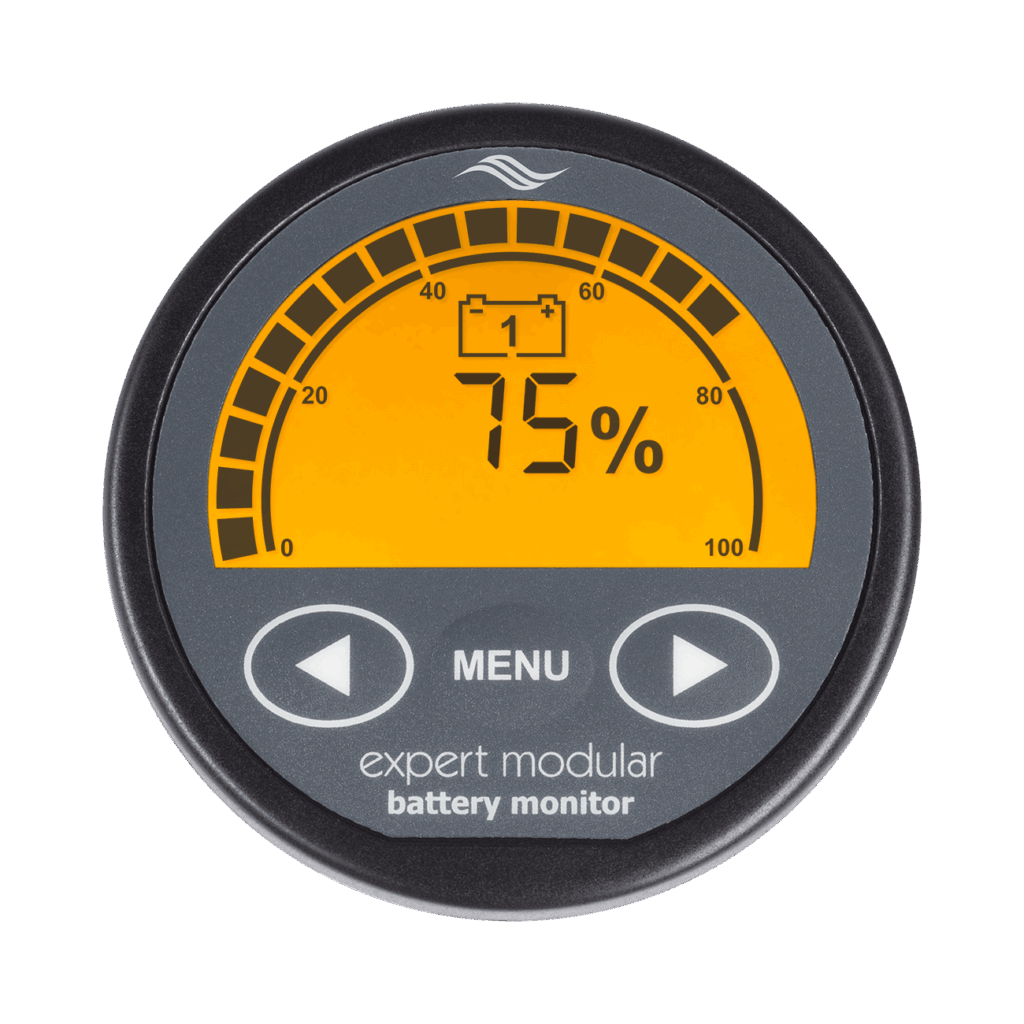

The Expert Modular is our latest generation, highly advanced battery monitor. It consists of an intelligent shunt and a remote control and display unit. The shunt has a Grid Optimized footprint for perfect integration with our DC Modular products. This advanced battery monitor not only shows the true state of charge of your battery system.
Battery Monitor – Expert Modular (12V-24V-48V) Read More »
